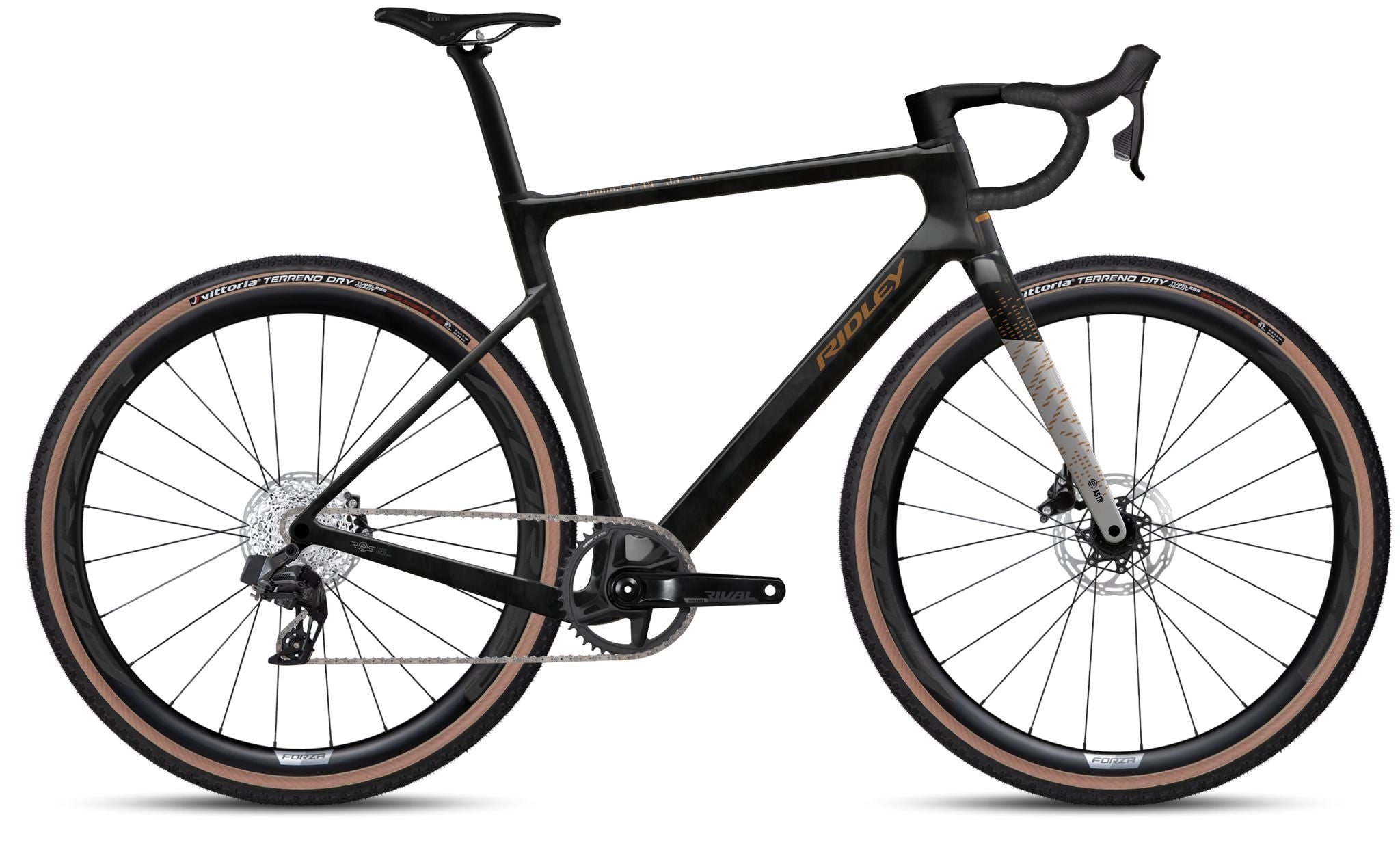

Elektriratas Ridley E-ASTR Apex XPLR AXS 1x12 (XS)
RATAS TEHASELAOS, TARNE 5-12 TÖÖPÄEVA!
The E-ASTR is the electric version of our ASTR RS, the benchmark in gravel performance. Built on the same frame and geometry, it delivers the same responsive handling and ride feel — with a subtle boost thanks to the compact and silent TQ HPR40 motor.
With tire clearance up to 52 mm and a geometry optimized for control, agility and speed, the E-ASTR stays true to its racing roots. The natural-feeling assistance cuts off smoothly above 25 km/h and provides just the right support when needed. A fully integrated 290 Wh battery and optional 160 Wh range extender offer plenty of range without compromising weight or looks.
The E-ASTR guarantees a sporty, natural ride — with just that little bit extra, without sacrificing suppleness or control.
| Item number | SBIEASRID031 |
| Brand | Ridley |
| Model | E-Astr |
| Design code | EAS01As |
| Size | XS |
| Range | Gravel |
| Frame | E-ASTR, HM carbon, designed for TQ mid motor, TA12x142, 52mm tire clearance |
| Fork | E-Astr 7E9/EAS01As |
| Material | Carbon |
| Groupset | Sram Apex XPLR AXS 1x12sp |
| Crank | Praxis Type-5 // 42T // 172mm |
| Cassette | SRAM XPLR PG-1231 12s 11-44T |
| Electric bike | Yes |
| Drive Unit | TQ drive unit, light assist |
| Battery | TQ Lithium-Ion 290Wh |
| Brake Type | Flat Mount |
| Rear Derailleur | SRAM APEX XPLR AXS // 12s |
| Handlebar | Deda Superzero Alloy Gravel // 400mm (cc shifters) - 48mm (cc drops) // 16° flared // Drop 120mm // Reach 75mm |
| Stem | Deda Super Box // 90 mm // Polish On Black |
| Seatpost | Forza Aero // 6mm Offset // 350mm |
| Saddle | Selle San Marco Shortfit 2.0 |
| Front Wheel | DT Swiss G1800 Spline // TA 12x100mm // Tubeless Ready// 25mm Deep // 24mmm Internal Width |
| Rear Wheel | DT Swiss G1800 Spline // TA 12x142mm // Tubeless Ready // 25mm Deep // 24mm Internal Width |
| Tyres | Vittoria Terreno T50 // 700x50c // TLR // Black-Black |
| Max Tire Clearance 700c (*) | 50 mm |
| Configurable | Yes |
| Base Color | UD Carbon |
| Color 2 | Silver // 0 |
| Color 3 | Bronze Gold |
| Paint Finish | Glossy |
