Item number	SBIASTRID022

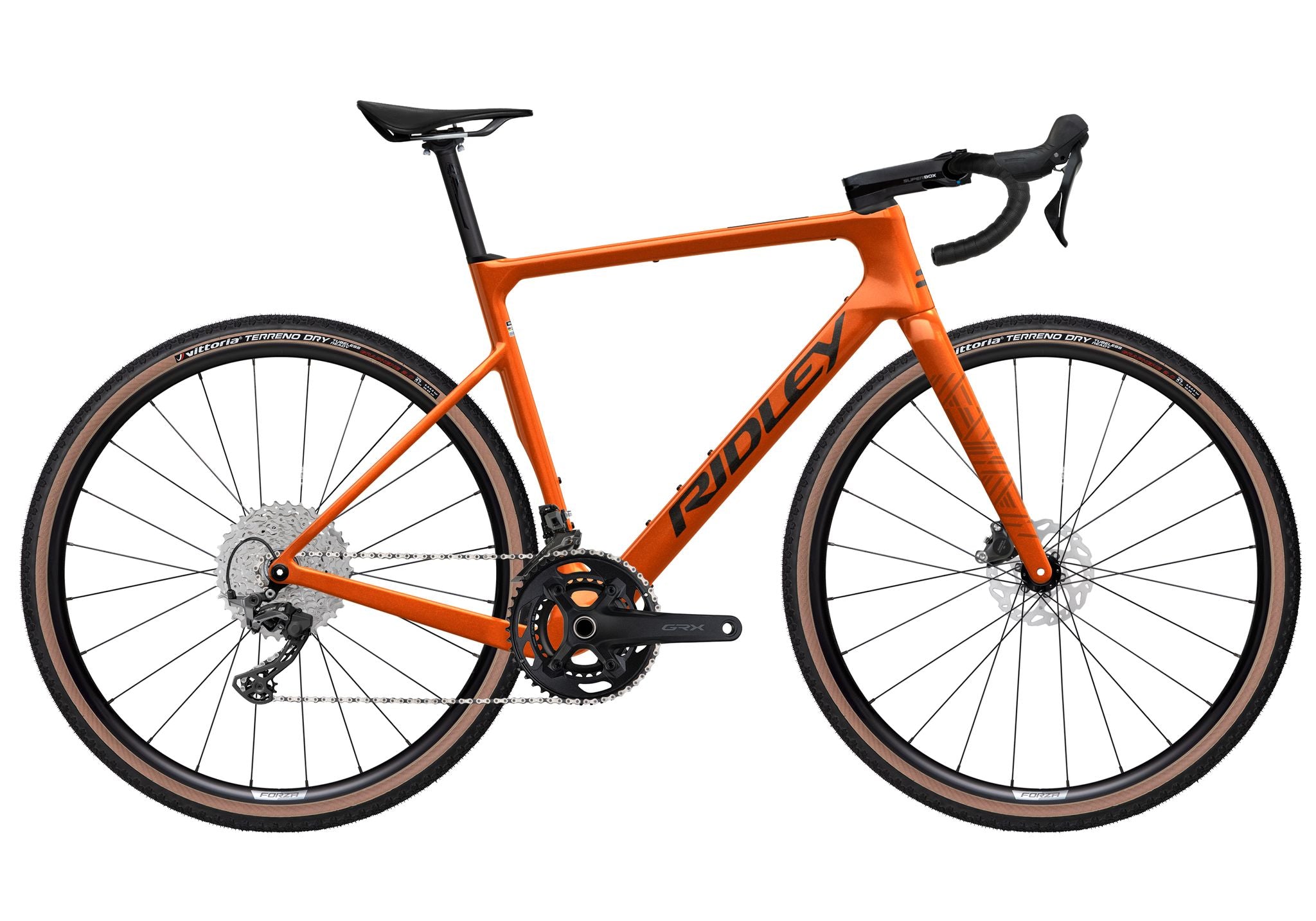

Brand	Ridley
Model	Astr
Design code	AST01As
Size	S
Range	Gravel
Frame	ASTR, HM carbon, BB86, TA12x142
Fork	ASTR, TA 12x100, Integrated forkcrown diffuser; 50mm rake, D-Shape steerer
Material	Carbon
Groupset	Shimano GRX600 2x12sp
Crank	Shimano GRX 610 // 172,5 // 46-30
Cassette	Shimano 105 // 12s // 11-36
Electric bike	No
Brake Type	Flat Mount
Front Derailleur	Shimano GRX 800 // Braze-On
Rear Derailleur	Shimano GRX 800 // 12sp // Medium Cage (36T)
Handlebar	Deda Superzero Alloy Gravel // 400mm (cc shifters) - 48mm (cc drops) // 16° flared // Drop 120mm // Reach 75mm
Stem	Deda Super Box // 90 mm // Polish On Black
Seatpost	4ZA Cirrus // 27.2 // 400mm // Zero offset // Black
Saddle	Selle Italia Model X // Black
Front Wheel	DT Swiss G1800 Classic // TA 12x100mm // Tubeless Ready// 25mm Deep // 24mm Internal Width
Rear Wheel	DT Swiss G1800 Classic // TA 12x100mm // Tubeless Ready// 25mm Deep // 24mm Internal Width
Outer Tyre	Terreno T60 700x45c/Grav Brown-blk-blk G2.0 OEM HP
*Max Tire Clearance 700c ()**	52mm (1x drivetrain) / 47mm (2x drivetrain)
Configurable	Yes
Base Color	Rich Orange Metallic // 510
Color 2	PMS167
Color 3	Black Metallic // 9
Paint Finish	Glossy
